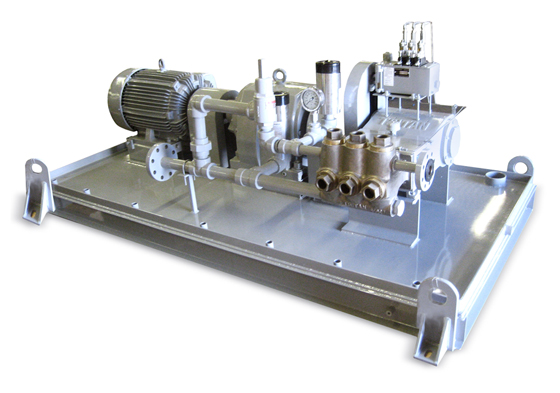

Series 3150AB-ES
Triplex Plunger Pump
1 1/4"- 3 " x 3 1/2"
Gearbox Driven by Electric Motor
The pump used in this package is the Series 3150 AB/DI/SS
Tritan 3150 AB/DI/SS - Triplex reciprocating plunger pumps are engineered to provide longer life and lower maintenance cost and are driven by electric motor, gasoline or diesel engine. Fluid ends are available in aluminum bronze, ductile iron, or stainless steel depending on application. Triplex pumps are positive-displacement reciprocating plunger pumps that are configured with three plungers and they are the most common configuration of pump used in high-pressure service operations. Triplex pumps are capable of handling a wide range of fluid types, including corrosive fluids. The applications for these pumps include saltwater disposal, chemical injection, boiler feed water and pressure testing.
Pressure: | up to 5,500 PSI |
Flow: | up to 160 GPM |
Horsepower: | up to 150 HP |
Series 3150 AB/DI/SS Triplex Plunger Pumps are specifically engineered to pump Crude Oil, Fresh Water, Salt Water, and Corrosive Fluids.
